5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile

Name: 55KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile
Brand: Shenghong
Price: 1 USD

Quality 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile for sale

Brand Name : Shenghong

Model Number : SH16-314-8

Certification : CE ISO SGS

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 30 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Tile Type : Colored Steel

Production Capacity : 5-8m/minute

Power(W) : 5.5KW

Dimension(L*W*H) : 7m*1.5m*0.8m

Contact Now

5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile

INTRODUCTION

Material Width: 1000mm

Material Thickness: 0.4-0.8mm (inspection thickness: 0.4mm=garge 26)

Applicable material: Galvanized Steel (GI), or Prepainted Galvanized Steel (PPGI)

Machine Components:

Manual Decoiler: 1 set
- un-powered, Manually control steel coil inner bore shrinkage and stop
- max feeding width: 1000mm, coil ID range 470mm+/-30mm
- max capacity: 5 ton
Main machine:
- with feeding material guide, body frame made from H beam steel by welding rollers nanufactured from 45# steel, precision machined, hard Chrome Coated.
- Shaft diameter: 75mm, precision machined
- Main Motor: 5.5kw, frequency speed control
- forming speed: 5m/min
Hydraulic cutting:
- cutter frame made from high quality 20mm steel plate by welding
- pump motor: 5.5kw
- cutting tool material: Cr12, Heat treatment
PLC control:
- control the quantity and cutting length automatically
- PLC brand: Panasonic or customized
- control voltage 24V
Exit Rack:
- Un-powered, two units

WORKING STEPS

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting

→Products receiving

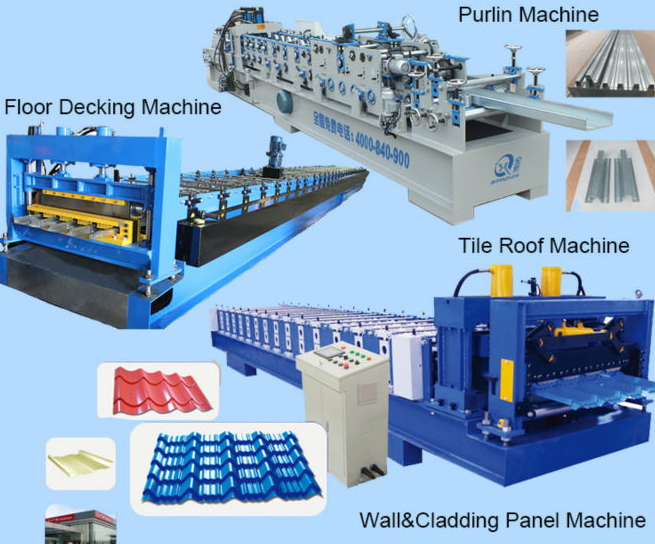

More products for chose

5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile

More information about steel roof panel profiles, Pls contact with us!
